MAX8811EEE+
Manufacturer:
Analog Devices / Maxim Integrated
Mfr.Part #:
MAX8811EEE+
Datasheet:
Description:

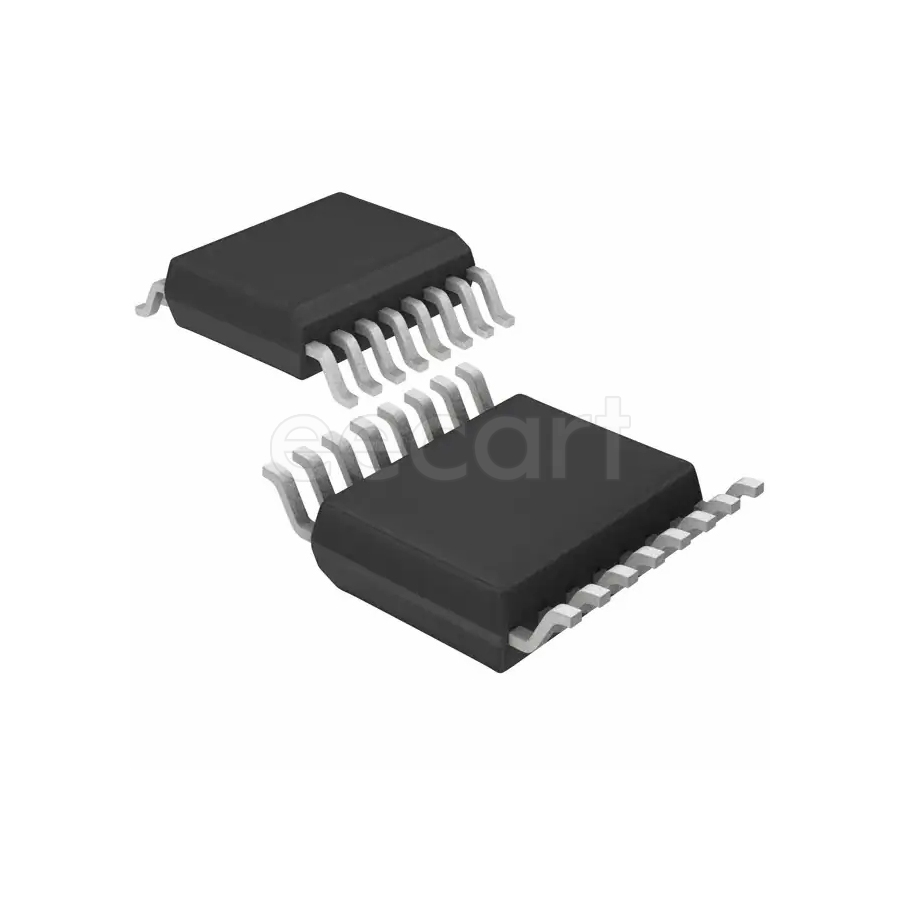

Gate Drivers QSOP-16 SMD/SMT HighSide, LowSide N-Channel MOSFET Synchronous
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Lifecycle Status | Production (Last Updated: 3 months ago) |
| Max Power Dissipation | 666.7 mW |
| Max Supply Voltage | 7 V |
| Min Supply Voltage | 4.5 V |
| Max Output Current | 30 A |
| Max Supply Current | 1.5 mA |
| Number of Outputs | 4 |
| Number of Drivers | 2 |
| Output Current | 30 A |
| Rise Time | 11 ns |
| Fall Time | 11 ns |
| Packaging | Tube |
| Configuration | HighSide, LowSide |
| Channel Type | Synchronous |
| Gate Type | N-Channel MOSFET |
| Logic Voltage | 0.8 V, 2.6 V |
| High Side Voltage | 30 V |
| RoHS | Compliant |
